TENDA HG3 N300 WI-FI XPON ONT

Tenda HG3 N300 Wi-Fi xPON ONT

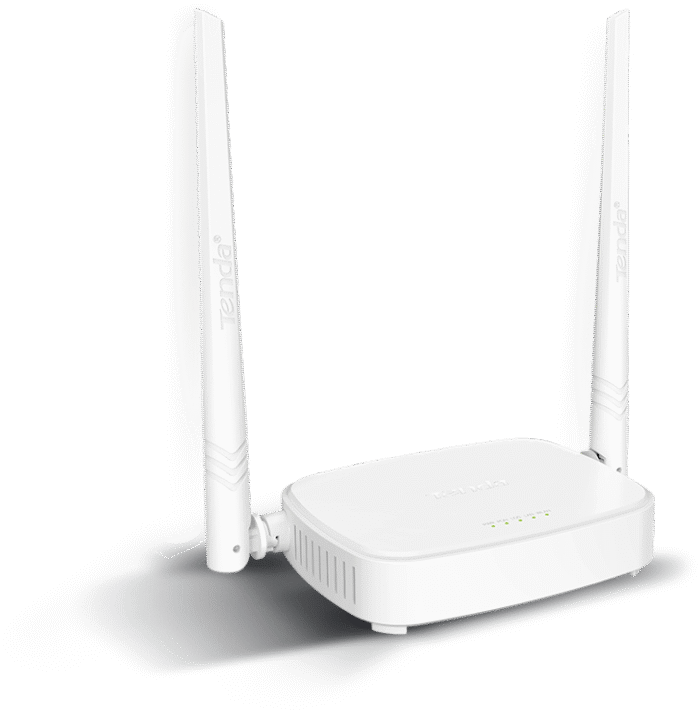

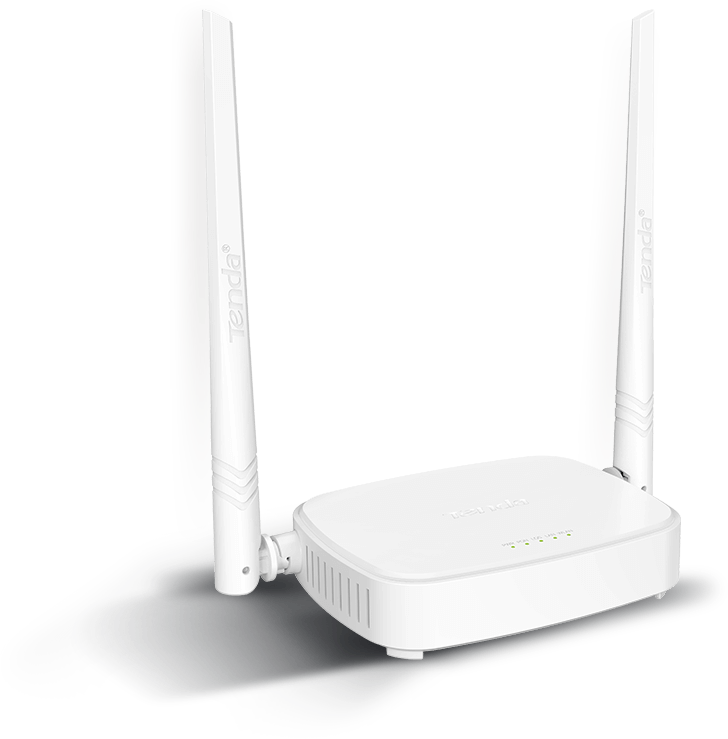

The Tenda HG3 N300 is an all-in-one Fiber-to-the-Home (FTTH) solution that combines a high-performance Optical Network Terminal (ONT) with a powerful Wi-Fi router. Designed for both home users and ISPs, it delivers fast, stable, and wide-range wireless internet access with support for both EPON and GPON technologies.

Key Features:

• Dual Network Compatibility: Supports both EPON and GPON, compatible with most major OLT brands.

• Reliable Wireless Speed: Offers up to 300Mbps on 2.4GHz frequency using 802.11n Wi-Fi standards.

• Wide Coverage: Equipped with two high-gain 5dBi antennas and optimized RF tuning for strong signal strength and better wall penetration.

• Strong Performance: Powered by a 1GHz CPU and 1GB RAM for smooth multitasking and stable connectivity.

• Easy Setup & Maintenance: Supports plug-and-play configuration, easy reset to ISP-defined settings, and batch deployment options.

• Remote Management: Compatible with OAM, OMCI, and TR069 protocols for centralized, remote network management.

Technical Specifications:

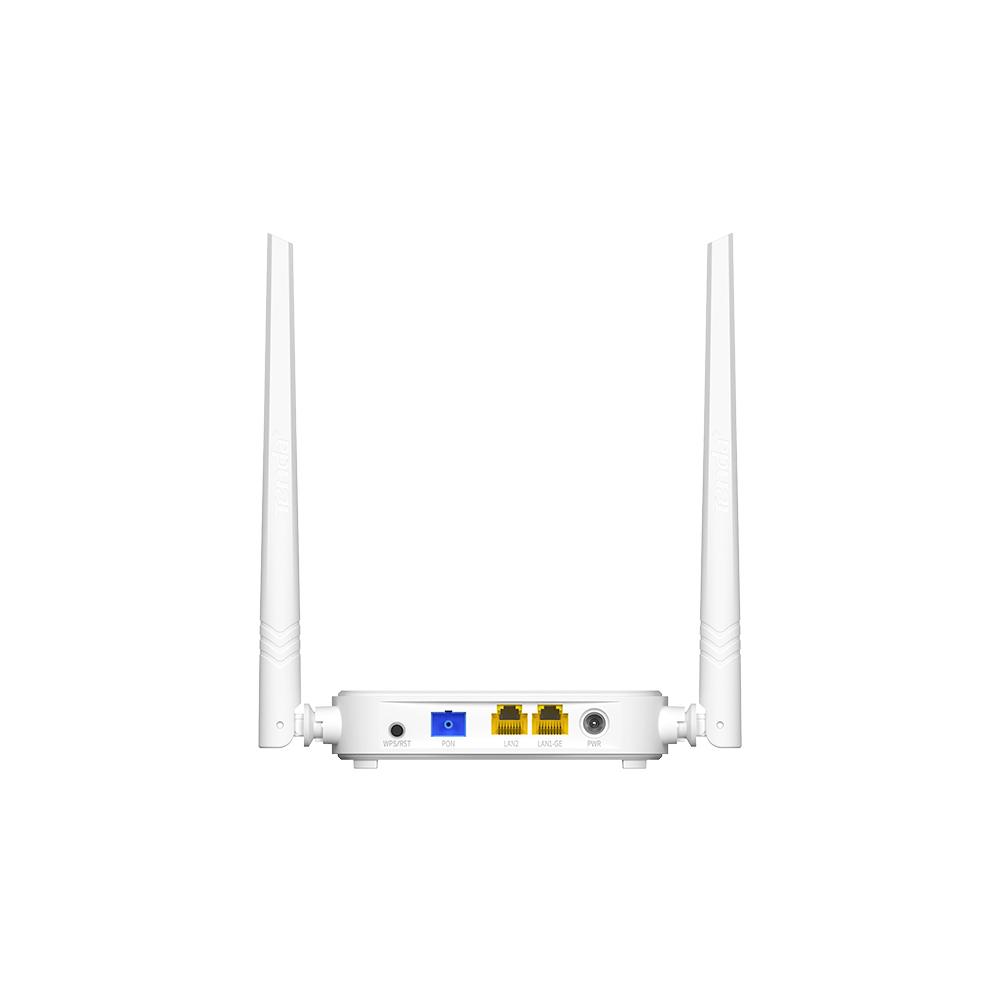

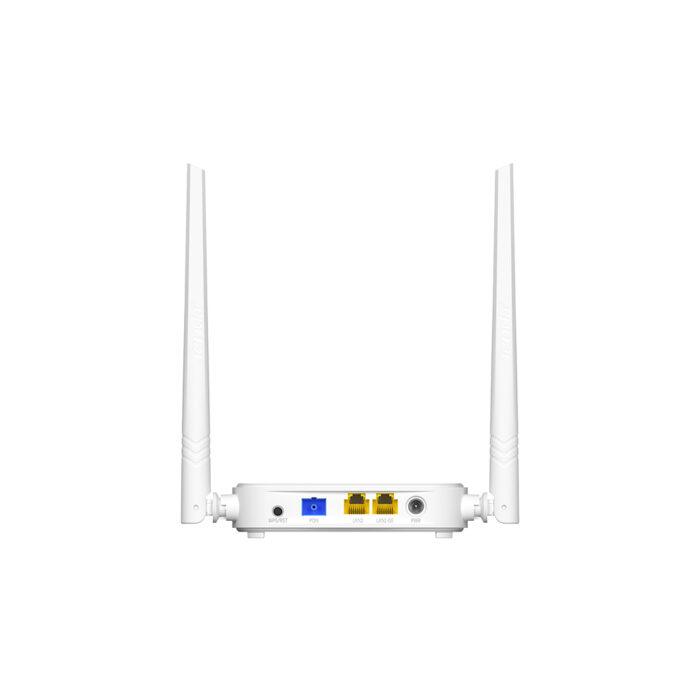

• Ports:

  • 1× SC/APC (or UPC) PON port

  • 1× Gigabit LAN port

  • 1× 100Mbps LAN port

  • 1× DC power input

• Wi-Fi Standards: IEEE 802.11b/g/n

• Wi-Fi Speed: Up to 300Mbps

• Power Supply: DC 9V/1A

• Power Consumption: ≤9W

• Dimensions: 166.6 × 90.5 × 27mm

• Operating Temperature: 0°C to 45°C

• Humidity Range: 10% to 90% (non-condensing)

Optical Specs:

• Transmission Wavelength: 1310nm

• Reception Wavelength: 1490nm

• Optical Class: Class B+

• Transmission Distance: Up to 20km

• TX Power: 0.5–5dBm

• RX Sensitivity: -28 to -8dBm

Additional Features:

• IPv6 support

• Guest network and client filtering

• Energy-efficient design, CE/FCC/RoHS compliant
